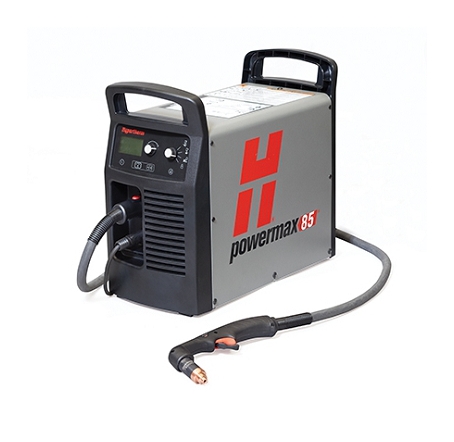

Input voltages
|
CSA
|
200 – 480 V, 1-PH, 50/60 Hz
200 – 600 V, 3-PH, 50/60 Hz
|
|
CE
|
400 V, 3-PH, 50/60 Hz
|
|
Input Current @12.2 kW
|
CSA
|
200/208/240/480 V, 1-PH, 70/68/58/29 A
200/208/240/480/600 V, 3-PH, 42/40/35/18/17 A
|
|
CE
|
380/400 V, 3-PH, 20.5/19.5 A
|
|
Output current
|
25 - 85 A
|
|
Rated output voltage
|
143 VDC
|
|
Duty cycle @ 40°C (104°F)
|
CSA
|
60% @ 85 A, 230 – 600 V, 3-PH
60% @ 85 A, 480 V, 1-PH
50% @ 85 A, 240 V, 1-PH
50% @ 85 A, 200 – 208 V, 3-PH
40% @ 85 A, 200 – 208 V, 1-PH
100% @ 66 A, 230 – 600 V, 1/3-PH
|
|
CE
|
60% @ 85 A, 380/400 V, 3-PH
100% @ 66 A, 380/400 V, 3-PH
|
|
Open circuit voltage (OCV)
|
CSA
|
305 VDC
|
|
CE
|
270 VDC
|
|
Dimensions with handles
|
500 mm (19.7") D; 234 mm (9.2") W; 455 mm (17.9") H
|
|
Weight with 7.6 m ( 25') torch
|
CSA
|
32 kg (71 lbs)
|
|
CE
|
28 kg (62 lbs)
|
|
Gas Supply
|
Clean, dry, oil-free air or nitrogen
|
|
Recommended gas inlet
flow rate / pressure
|
Cutting: 189 l/min (400 scfh, 6.7 scfm) @ 5.9 bar (85 psi)
Gouging: 212 l/min (450 scfh, 7.5 scfm) @ 4.8 bar (70 psi)
|
|
Input power cable length
|
3 m (10')
|
|
Power supply type
|
Inverter - IGBT
|
