FRANKLIN STEEL plc

Parallel Flange Channels

Certified to British/EU Specification

Parrallel Flange Channels or 'C-section' as they are sometimes known as, range in sizes from 76 x 38mm upto 430 x 100mm. We can cut these to length as required or we can supply lengths ranging from 6000mm up to 18000mm.

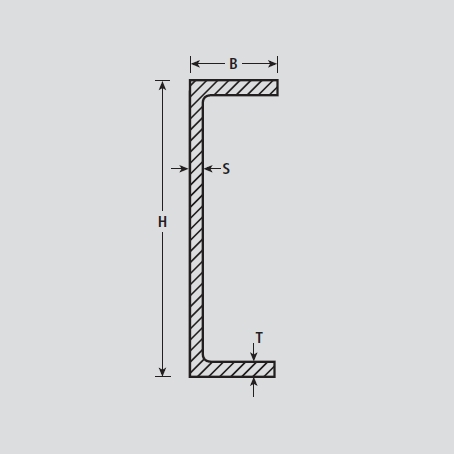

Section (mm)Mass per Metre (kg/m)Depth of Section (H) (mm)Width of Section (B) (mm)Web Thickness (S) (mm)Flange Thickness (T) (mm)
100 x 5010.21005058.5
125 x 6514.8125655.59.5
150 x 7517.9150755.510
150 x 9023.9150906.512
180 x 7520.318075610.5
180 x 9026.1180906.512.5
200 x 7523.420075612.5
200 x 9029.720090714
230 x 7525.7230756.512.5
230 x 9032.2230907.514
260 x 7527.626075712
260 x 9034.826090814
300 x 9041.430090915.5
300 x 10045.5300100916.5
380 x 100543801009.517.5
430 x 100 64.44301001119
